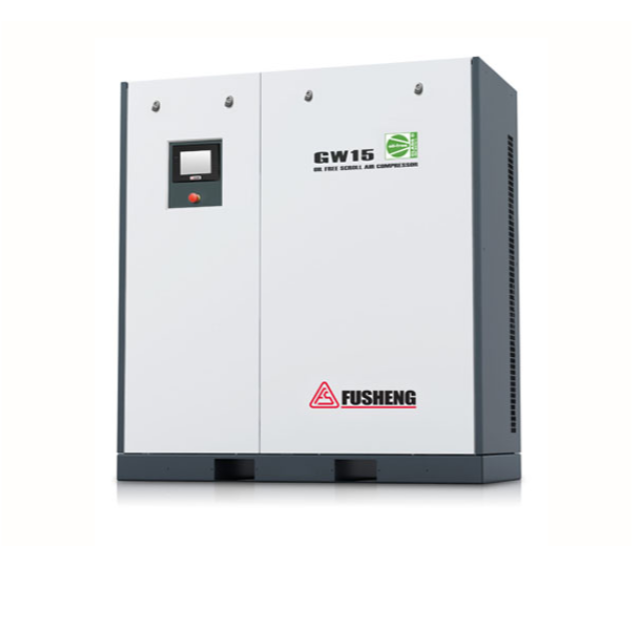

GW Series oil-free scroll air compressor

INSTRUCTIONS

The Fusheng GW series combined with advanced industrial technology, 100% oil free, with high efficiency IE3 motor and low noise vibration operation, provide high quality oil free compressed air solution.

Due to its precise and planned design, the Fusheng GW scroll series has the most ideal floor space, can be placed in limited interior space and workplaces, and the exhaust range is from 0.345 ~ 1.76 m3 / min. The operating pressure was 7/8/10 bar. low power of 5-20HP, which can realize low maintenance and operation cost.

Advantages

Pure oil-free air – Without any oil and water between compression process, high cleanliness, no oil pollution, line with ISO 8573.1 Class 0 Compressed air Quality .

Low noise level – High reliability, durability, lower noise and vibration.

Energy efficiency – Start / stop and without unloading state.

More environmentally friendly - No need to replace oil, oil filter, oil fine separation, no waste disposal problem.

Easy service and maintenance – Less spare parts and valves.

Limitation

High precision – High quality control of manufacturing and assembly

High discharge temperature – Over 200℃ at 0.8Mpa

High environmental sensitivity – Ambient temperature must lower than 40 ℃

Technical Parameters

models	work pressure MPa	exhaust volume m³/min	power kW	dimensions mm	weights kg	Interface Size	noise  dB(A)
GW04A-7B	0.7	0.44	3.7×1	640×604×895	170	1/2″	61
GW04A-8B	0.8	0.425
GW04A-10B	1.0	0.345
GW04A-7P	0.7	0.44	3.7×1	1550×604×1510	325	1/2″	61
GW04A-8P	0.8	0.425
GW04A-10P	1.0	0.345
GW08A-7B	0.7	0.88	3.7×2	1020×750×1645	440	3/4″	63
GW08A-8B	0.8	0.85
GW08A-10B	1.0	0.69
GW11A-7B	0.7	1.32	3.7×3	1600×750×1830	650	1″	64
GW11A-8B	0.8	1.275
GW11A-10B	1.0	1.035
GW15A-7B	0.7	1.76	3.7×4	1600×750×1830	720	1″	65
GW15A-8B	0.8	1.70
GW15A-10B	1.0	1.38
