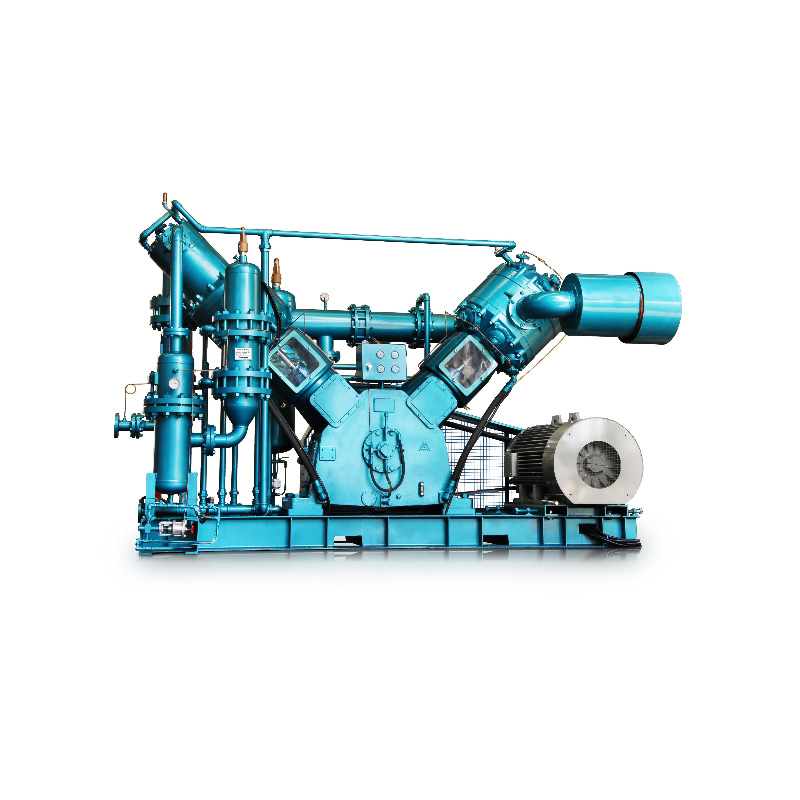

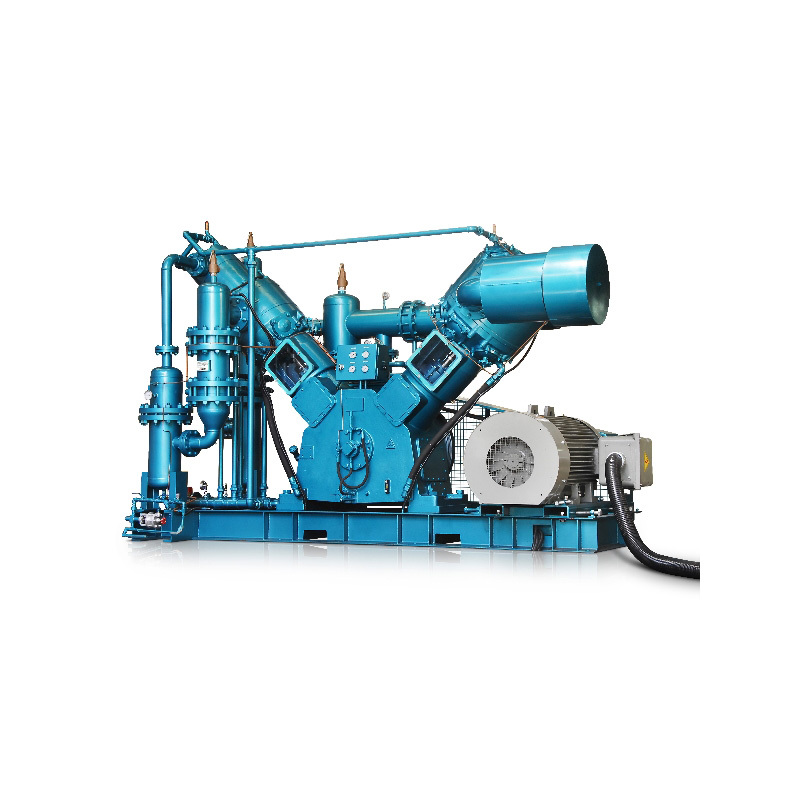

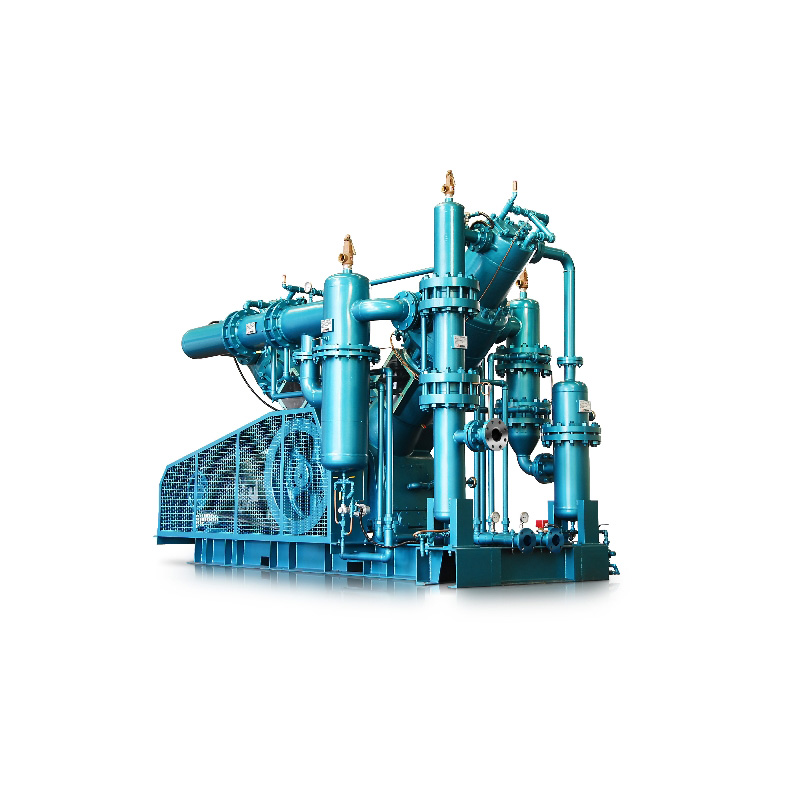

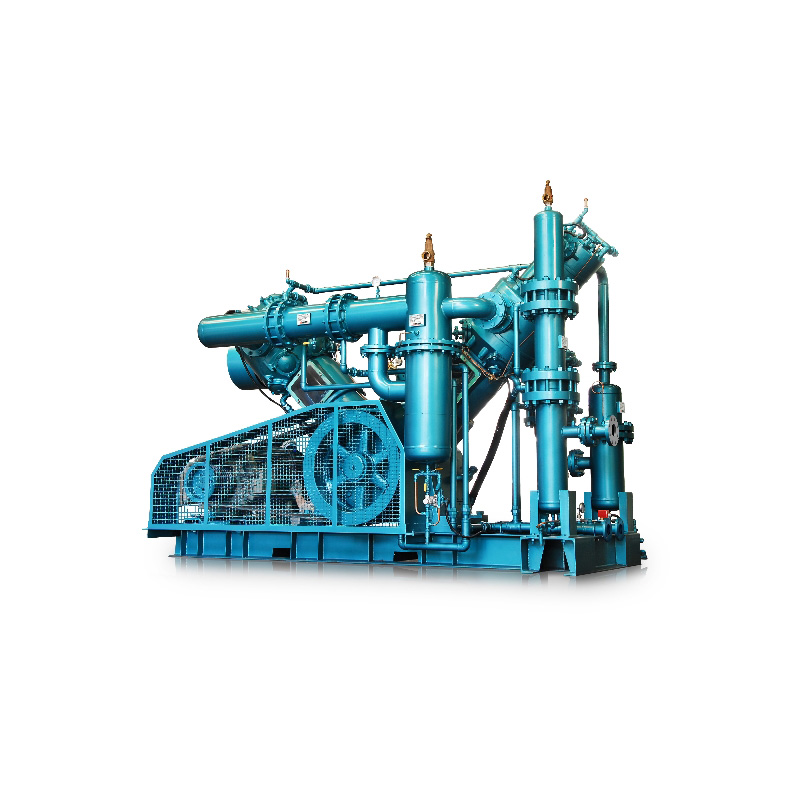

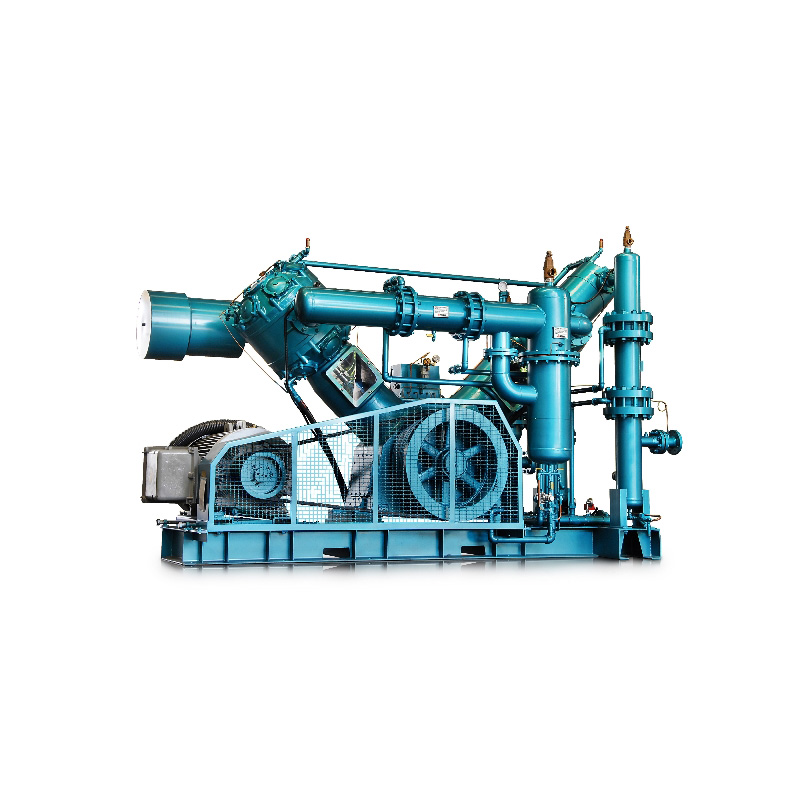

FUSHENG VFW Series oil-free reciprocating campressor

Name: FUSHENG VFW Series oil-free reciprocating campressor
Brand: fusheng airman air compressor
Price: 80000.00 USD
Availability: InStock
Rating: 5 (1 reviews)

The Fusheng VFW oil-free, high-pressure, 100% clean air compressor series is specially designed for the PET blow molding industry. Drawing from the wealth of experience gained from long-term operations in varying conditions, the compressors are engineered to be highly efficient and reliable as they provide a stable supply of compressed air for blow molding. The series ranges from 50 to 300HP with discharge pressures ranging from 25 to 40 kg/cm² and is accommodated for variable injection volumes. The VFW series has a built-in user-friendly interface, touch-screen panel, and PLC control system. The compressor is equipped with multiple alert systems and safety features for better overall control. Operating parameters, status, and servicing instructions are shown on the monitor to provide the user with important data concerning periodic and preventive maintenance.

$80000.00

GET A QUOTE

Description

INSTRUCTIONS
The Fusheng VFW oil-free, high-pressure, 100% clean air compressor series is specially designed for the PET blow molding industry. Drawing from the wealth of experience gained from long-term operations in varying conditions, the compressors are engineered to be highly efficient and reliable as they provide a stable supply of compressed air for blow molding. The series ranges from 50 to 300HP with discharge pressures ranging from 25 to 40 kg/cm² and is accommodated for variable injection volumes. The VFW series has a built-in user-friendly interface, touch-screen panel, and PLC control system. The compressor is equipped with multiple alert systems and safety features for better overall control. Operating parameters, status, and servicing instructions are shown on the monitor to provide the user with important data concerning periodic and preventive maintenance.

FEATURES

Each standard model features capacity control ranging from 0% to 100%, but customization for 0% to 50% to 100% is also available. Automatic flow control can automatically perform loading/unloading adjustments to avoid machine halts from over-idling, and to prevent the compressor from frequently turning on/off and idling. As a result, energy saving can be achieved, the service life of parts are prolonged, and maintenance costs can be reduced.

µ-level air filtering accuracy, suitable for various industrial environments

The PLC control system offers a user-friendly interface. It is equipped with multiple alert systems and safety features for better overall control. Real-time operating parameters, status, and servicing instructions are shown on the monitor to provide the user with important data concerning periodic and preventive maintenance.

Driven by the crankshaft of the oil pump so that no additional power needed.

Suction/discharge valves are made of stainless steel for high strength and a long service life. Pistons are made of aluminum alloy for effective weight reduction and dynamic balance.

Features the latest defogging design and optimized condensation separation for greater compression efficiency

The compressor body is encapsulated in a water jacket for effective cooling and increased longevity of parts and components.

Technical parameters

models			VFW-50	VFW-75	VFW-100	VFW-125	VFW-150	VFW-175	VFW-215	VFW-250	VFW-300
exhaust volume		m³/min	3.6	5.5	7.4	8.8	11.6	13.5	16.0	19.2	23.0
Maximum working pressure		MPa	4.0
Cylinder Bore x Number of Cylinders	first stage	mm	φ255×1	φ255×1	φ320×1	φ320×1	φ350×1	φ350×1	φ375×1	φ450×1	φ450×1
	second stage	mm	φ180×1	φ180×1	φ220×1	φ220×1	φ250×1	φ250×1	φ260×1	φ300×1	φ300×1
	three stage	mm	φ95×1	φ95×1	φ115×1	φ115×1	φ125×1	φ125×1	φ130×1	φ155×1	φ155×1
Piston stroke		mm	160	160	160	160	200	200	200	200	200
Rotation speed of the body		r/min	300	455	385	455	395	460	460	385	460
Motor power		kW/HP	37/50	55/75	75/100	90/125	110/150	132/175	160/215	185/250	220/300
Cooling water volume		L/min	110	160	200	250	310	360	450	540	650
Overall dimensions	length	mm	3740	3740	3870	3870	4250	4250	4250	4380	4380
	widths	mm	1830	1830	1850	1850	1850	1950	1950	2050	2050
	height	mm	2520	2520	2550	2550	2790	2790	2790	2810	2810
weights		kg	5500	5500	6500	6500	8000	8000	8500	10000	10000
