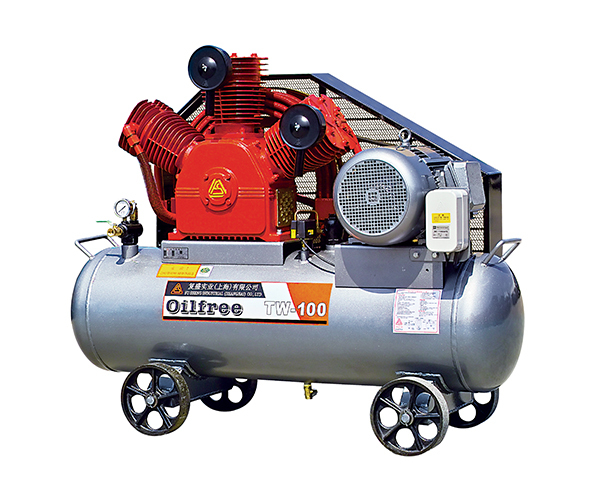

Fusheng TW Series Air-cooled Reciprocating Piston Compressor with Oil-free Lubrication

Tw series air-cooled reciprocating oil-free air compressor is designed without lubricating oil in the crankcase. There is no need to worry that the oil in the crankcase will enter the compression chamber along the connecting rod and affect the quality of the final product. 100% oil-free air quality is ensured.

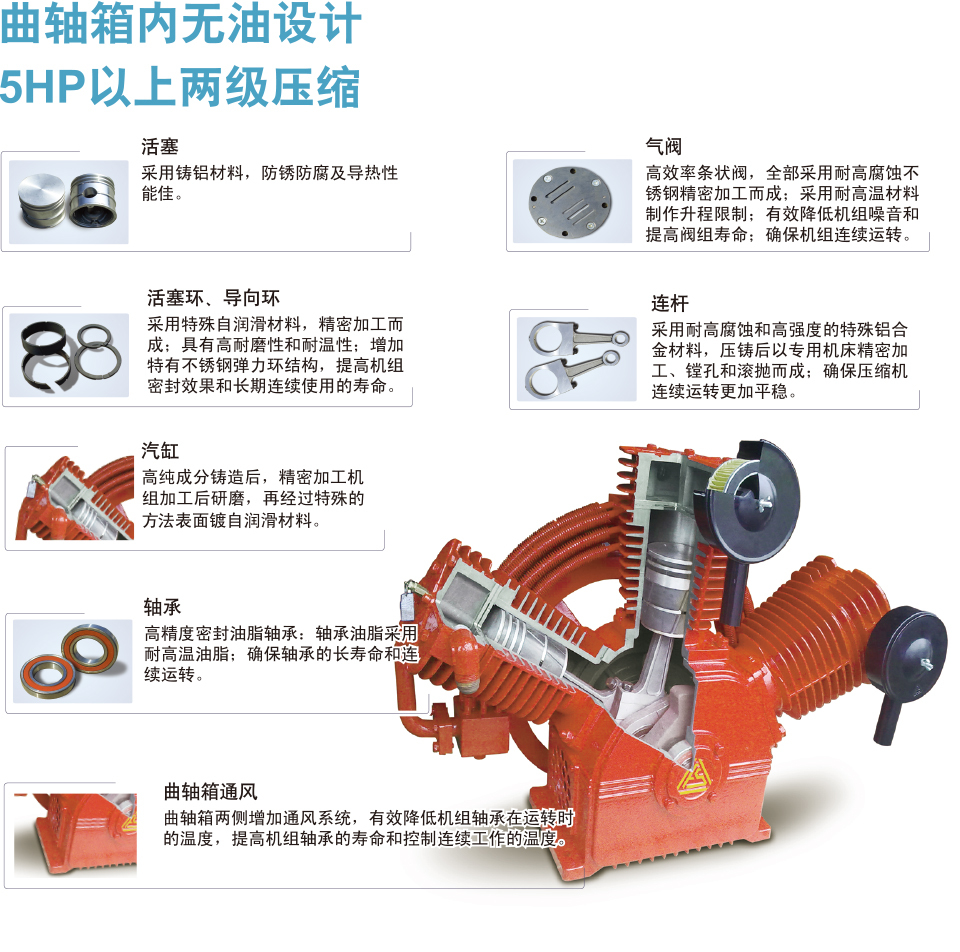

The overall balance design of TW body and air barrel reduces the operation noise and vibration, and increases the service life of moving parts through low-speed rotation. In order to improve the sealing performance and reliability, high-strength grease lubricated bearings are used. In addition, crankcase cooling holes are added to prolong the service life of the bearing. The two-stage compression design of models above 5HP reduces the exhaust temperature and improves the efficiency. The suction and exhaust valve adopts a special high-temperature resistant disc valve design to improve the air tightness, and the stainless steel material is used to improve the quality and reliability. The compression ring used by the piston is a spring compression ring, which improves the air tightness during compression, reduces air leakage and greatly improves the volumetric efficiency.
$1000.00
  • Fusheng TW Series Air-cooled Reciprocating Piston Compressor with Oil-free Lubrication
  • Fusheng TW Series Air-cooled Reciprocating Piston Compressor with Oil-free Lubrication
  • Fusheng TW Series Air-cooled Reciprocating Piston Compressor with Oil-free Lubrication

Description

Tw series air-cooled reciprocating oil-free air compressor is designed without lubricating oil in the crankcase. There is no need to worry that the oil in the crankcase will enter the compression chamber along the connecting rod and affect the quality of the final product. 100% oil-free air quality is ensured.
The overall balance design of TW body and air barrel reduces the operation noise and vibration, and increases the service life of moving parts through low-speed rotation. In order to improve the sealing performance and reliability, high-strength grease lubricated bearings are used. In addition, crankcase cooling holes are added to prolong the service life of the bearing. The two-stage compression design of models above 5HP reduces the exhaust temperature and improves the efficiency. The suction and exhaust valve adopts a special high-temperature resistant disc valve design to improve the air tightness, and the stainless steel material is used to improve the quality and reliability. The compression ring used by the piston is a spring compression ring, which improves the air tightness during compression, reduces air leakage and greatly improves the volumetric efficiency.

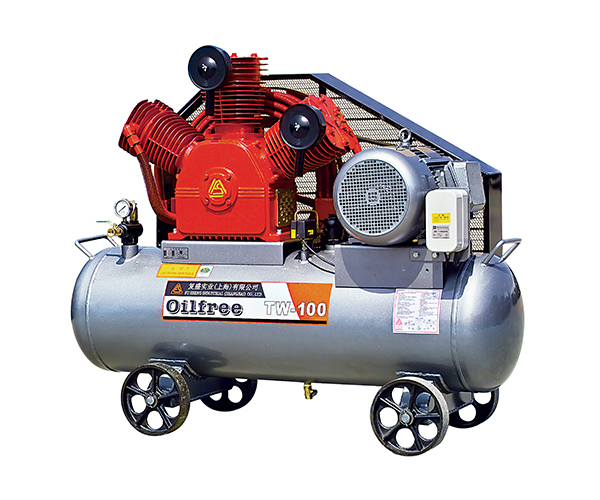

Fusheng TW Series Air-cooled Reciprocating Piston Compressor with Oil-free Lubrication
models TW-75H TW-100H TW-150H TW-200H TW-300H* TW-350H*
exhaust volume m³/min 0.6 0.83 1.1 1.5 2.2 2.6
exhaust pressure MPa 1.0 1.0 1.0 1.0 1.0 1.0
Motor power kW 5.5 7.5 11 15 22 26
cycles rpm. 740 900 560 700 660/660 660/760
gas canister 0.22 0.22 0.26 0.41 0.5 0.5
Interface Size 3/4″ 3/4″ 3/4″ 3/4″ 1″ 1″
Overall dimensions length mm 1555 1555 1680 1832 1860 1860
width mm 611 600 700 715 1673 1673
height mm 1271 1350 1350 1524 1640 1680
weights kg 410 425 532 665 1000 1000
*TW300H、TW350H are dual-head, dual-motor models, the power indicated is the total motor power, and the number of revolutions is the number of revolutions of the two heads respectively.
