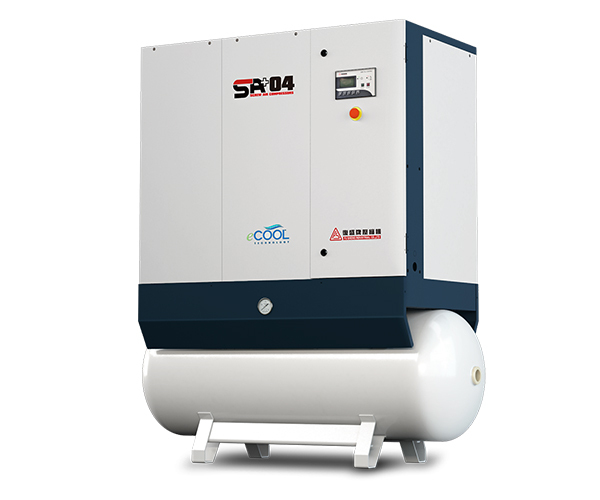

Fusheng SA+04-11 series Fusheng field type micro-oil screw air compressor

SA+04-11 series is closer to the point of gas consumption, which fundamentally reduces piping loss; and it is easy to install, plug and play. Standard models, inverter models, integrated tank models and full performance models are available to meet different needs.
SA+04-11 full-performance model is equipped with advanced freeze dryer and precision filter, directly providing clean air source. The process of full-performance unit is air compressor - storage tank - filter - freeze dryer, which is in line with the better process of compressed air.
Under the small and light weight, we even reserve the position of frequency converter. More to reduce the footprint, to create an ideal environment for customers to use.
$2800.00
  • Fusheng SA+04-11 series Fusheng field type micro-oil screw air compressor
  • Fusheng SA+04-11 series Fusheng field type micro-oil screw air compressor

Description

Product Description

SA+04-11 series is closer to the point of gas consumption, which fundamentally reduces piping loss; and it is easy to install, plug and play. Standard models, inverter models, integrated tank models and full performance models are available to meet different needs.
SA+04-11 full-performance model is equipped with advanced freeze dryer and precision filter, directly providing clean air source. The process of full-performance unit is air compressor - storage tank - filter - freeze dryer, which is in line with the better process of compressed air.
Under the small and light weight, we even reserve the position of frequency converter. More to reduce the footprint, to create an ideal environment for customers to use.























  • Product Features

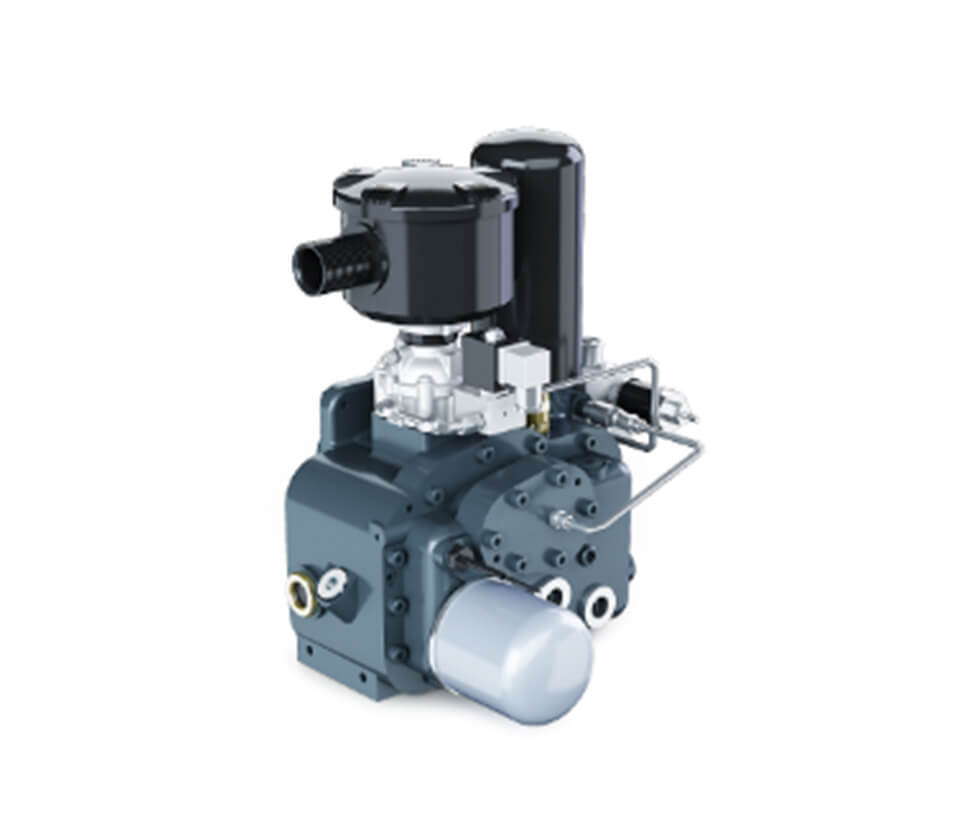

  • High-performance integrated mainframe
    • Highly integrated, high energy-efficiency and low noise design, the screw main unit, oil and gas cylinder, oil and fine separator, oil filter and air filter, air inlet valve are integrated into one unit, which constitutes the whole air compressor system except cooling system and motor. The external three filters are easy to maintain and there is no internal piping loss. It makes the air compressor meet the small and lightweight, and at the same time, it has enough space for maintenance.
  •  Refrigerator-grade noise
    • Whether it's the construction of the mainframe, the configuration of the cooling ducts or the architecture of the entire system, our design eliminates noise from the source, with refrigerator-level noise performance, giving you a quiet working environment.

Product Model
Product Model exhaust volume
(m³/min)
exhaust pressure
(MPa)
Motor power
(kW)
Outlet Size Overall dimensions weights
(kg)
length(mm) width(mm) height(mm)
standard model SA+04A-7 0.60 0.7 4 1/2″ 750 600 955 200
SA+04A-8 0.56 0.8
SA+04A-10 0.48 1.0
SA+04A-12 0.10 1.25
SA+06A-7 0.84 0.7 5.5 1/2″ 750 600 955 217
SA+06A-8 0.78 0.8
SA+06A-10 0.68 1.0
SA+06A-12 0.60 1.25
SA+08A-7 1.27 0.7 7.5 3/4″ 800 670 1100 275
SA+08A-8 1.18 0.8
SA+08A-10 1.00 1.0
SA+08A-12 0.80 1.25
SA+11A-7 1.82 0.7 11 3/4″ 800 670 1100 285
SA+11A-8 1.70 0.8
SA+11A-10 1.55 1.0
SA+11A-12 1.35 1.25
Models with gas tanks SA+04A-7P 0.60 0.7 4 1/2″ 1545 600 1565 340
SA+04A-8P 0.56 0.8
SA+04A-10P 0.48 1.0
SA+04A-12P 0.10 1.25
SA+06A-7P 0.84 0.7 5.5 1/2″ 1545 600 1565 357
SA+06A-8P 0.78 0.8
SA+06A-10P 0.68 1.0
SA+06A-12P 0.60 1.25
SA+08A-7P 1.27 0.7 7.5 3/4″ 1545 670 1710 415
SA+08A-8P 1.18 0.8
SA+08A-10P 1.00 1.0
SA+08A-12P 0.80 1.25
SA+11A-7P 1.82 0.7 11 3/4″ 1545 670 1710 425
SA+11A-8P 1.70 0.8
SA+11A-10P 1.55 1.0
SA+11A-12P 1.35 1.25
Full-performance models SA+04A-7F 0.60 0.7 4 1/2″ 1545 600 1565 400
SA+04A-8F 0.56 0.8
SA+04A-10F 0.48 1.0
SA+04A-12F 0.10 1.25
SA+06A-7F 0.84 0.7 5.5 1/2″ 1545 600 1565 417
SA+06A-8F 0.78 0.8
SA+06A-10F 0.68 1.0
SA+06A-12F 0.60 1.25
SA+08A-7F 1.27 0.7 7.5 3/4″ 1545 670 1710 498
SA+08A-8F 1.18 0.8
SA+08A-10F 1.00 1.0
SA+08A-12F 0.80 1.25
SA+11A-7F 1.82 0.7 11 3/4″ 1545 670 1710 508
SA+11A-8F 1.70 0.8
SA+11A-10F 1.55 1.0
SA+11A-12F 1.35 1.25
