Fusheng A series single-stage micro-oil air-cooled reciprocating air compressors

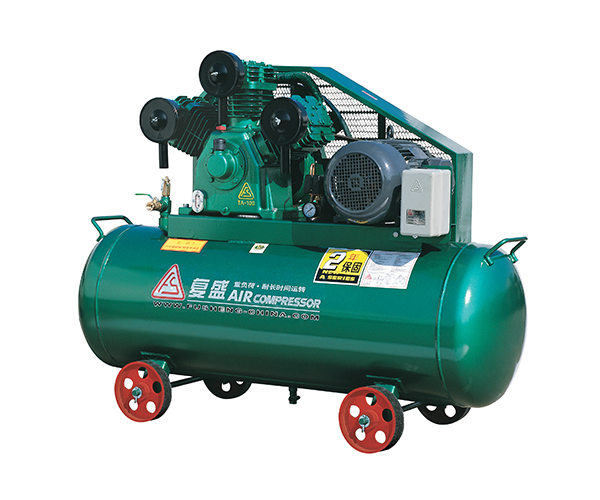

Fusheng A series air-cooled reciprocating air compressors are designed for general industrial use, with working pressures ranging from 0.8 to 1.2MPa to meet a variety of application requirements. The heavy-duty, low-speed design is suitable for long-duration operation, and is equipped with automatic and semi-automatic controls for energy-saving operation with empty and heavy duty or shutdown according to usage requirements. Suitable for automotive repair and maintenance, spraying, material manufacturing, textile, tire and other industries. Wider range of applications
$700.00
  • Fusheng A series single-stage micro-oil air-cooled reciprocating air compressors
  • Fusheng A series single-stage micro-oil air-cooled reciprocating air compressors

Description

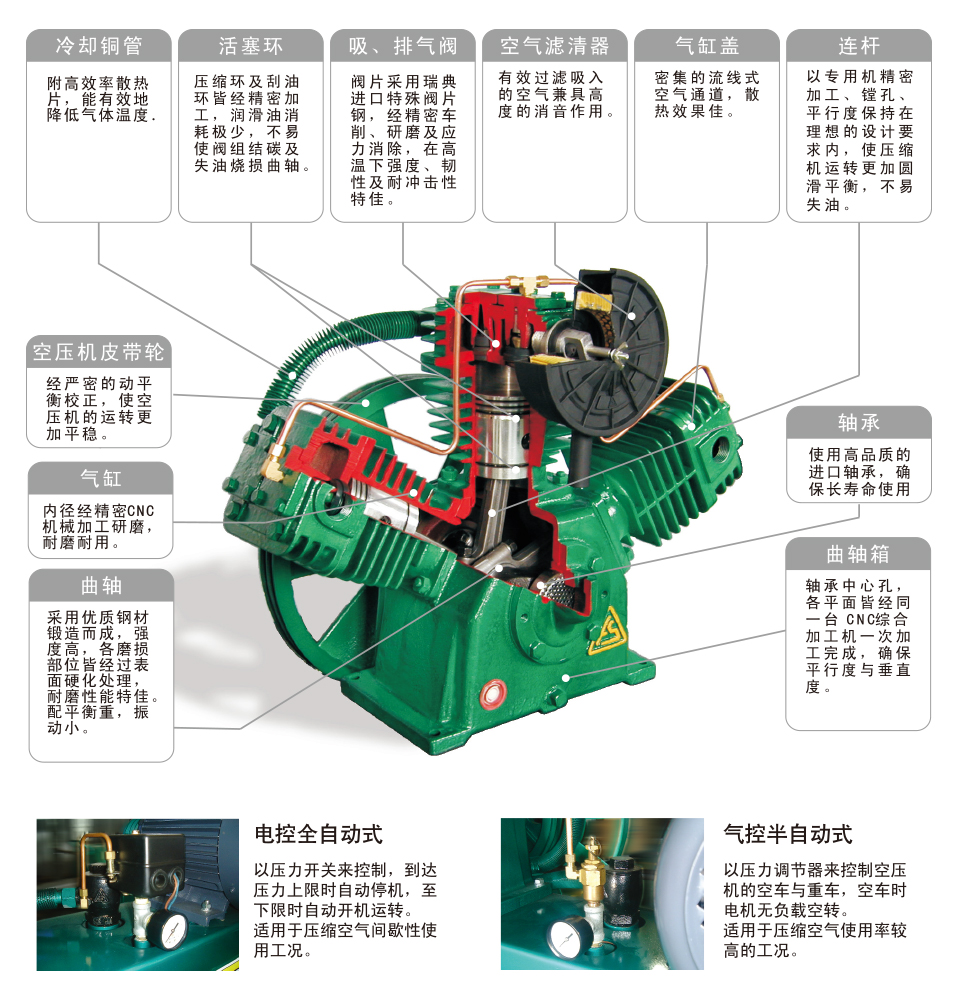

The Fusheng A series water-cooling reciprocating air compressor is designed for general industry use. Its standard operating pressure falls between 7 and 12 kg/cm2G and is suited for applications requiring variable high efficiency piston displacement volumes. The A series compressor runs from 0.37kW (½hp) to 15kW (20hp) and is designed for heavy-duty applications, low speed operation, and prolonged use. It is equipped with a fully-automatic and semi-automatic control for greater energy efficiency during loading/unloading or shut-down. It is suitable for use in industries involving automobile maintenance, paint and sprays, materials production, textile, and tires. The Fusheng A series air compressor has a wide scope of applications and can be customized into a 2-stage or 3-stage compression with operating pressures ranging from 18 kg/cm2G to 35 kg/cm2G. The suction/discharge valves are made of a special Swedish steel that carries essential properties such as impact resistance and a high tolerance for high-temperature operations. The cylinders, connecting rods, and piston rings are produced and ground by precision machines, allowing the A series compressor to offer excellent airtightness and low friction. All these features, including a high-precision crankshaft and crankcase, allow for balanced compressor operations with low vibration and high output volume.
The Fusheng A series is verified by TUV Rheinland, a third-party testing laboratory. The design of the compressed air system is based on the five elements (the 5 S’s) that we want our products to provide for the customers - security protection (Safety), ease of Service (Service), stability and reliability (Stable), the international certification (Specification - compliant) and Energy Saving (Cost Saving).


Fusheng A series single-stage micro-oil air-cooled reciprocating air compressors
models VA-65 TA-65 VA-80 TA-80 VA-100 TA-100 TA-120 TA-125 TA-220* TA-240*
exhaust volume m³/min 0.08 0.17 0.36 0.5 0.67 0.95 1.5 2.0 2.5 3.0
exhaust pressure MPa 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8
Motor power kW 0.75 1.5 3 4 5.5 7.5 11 15 18.5 22
bore×Number of cylinders mm×pcs. φ65×2 φ65×3 φ80×2 φ80×3 φ100×2 φ100×3 φ120×3 φ125×3 φ100×3
φ120×3
φ120×3
φ120×3
cycles rpm. 530 635 950 875 950 900 800 900 900/800 800/800
gas canister 0.07 0.07 0.11 0.17 0.23 0.30 0.36 0.4 0.5 0.5
Interface Size 1/4″ 1/4″ 1/2″ 1/2″ 3/4″ 3/4″ 3/4″ 1″ 1″ 1″
Overall dimensions length mm 1062 1062 1234 1370 1482 1560 1604 1790 1860 1860
width mm 388 388 470 540 590 620 670 760 1411 1407
height mm 720 743 880 1000 1100 1240 1420 1420 1547 1547
weights kg 94 107 156 208 265 360 470 500 860 940
*TA220 and TA240 are dual-head, dual-motor models, the power indicated is the total motor power, and the number of revolutions is the number of revolutions of the two heads respectively.
